2019 Jeep Compass: Electrical Problems: Simple Checks Before You Call

If the battery warning light comes on in your 2019 Jeep Compass, it means the electrical system in your car may not be charging correctly. Before you panic or call a tow truck, there are several simple checks you can do at home to narrow down what is wrong with your 2019 Jeep Compass whether it is safe to keep driving.

This guide focuses only on the 2019 Jeep Compass most common electrical problems. You will learn how to check the battery, alternator, fuses, grounds, and basic wiring so you can talk to a mechanic with confidence or fix minor issues yourself.

Common Electrical Symptoms in a 2019 Jeep Compass

Car Lights Dim While Driving: Electrical Causes, Diagnosis & Fixes

×

Your 2019 Jeep Compass electrical problems in many different ways. Paying attention to the exact symptoms helps you choose the right checks and avoid guessing.

• Battery light on or flickering on the dash
• Slow or no crank when you turn the key or push the start button
• Dim headlights or interior lights that brighten and dim as you drive
• Random warning lights on the instrument cluster
• Radio, power windows, or blower fan cutting out or resetting
• Clicking sound when trying to start your 2019 Jeep Compass

Each of these symptoms points you toward a different part of the 2019 Jeep Compass. The sections below break down what to check and in what order.

Safety First Before Working on Your 2019 Jeep Compass

Electrical work on a 2019 Jeep Compass low risk if you are careful, but you still need to protect yourself and the car. Always work with the engine off unless a step clearly says to start the engine.

• Park your 2019 Malibu on a flat surface, set the parking brake, and put the transmission in Park.
• Turn off all accessories in your 2019 Jeep Compass: lights, radio, blower fan, and heated seats.
• Remove metal jewelry like rings and watches so they cannot short across battery terminals.
• If you disconnect the battery on your 2019 Jeep Compass, always remove the negative (black) terminal first and reconnect it last.

If you ever see melted wiring, smell burning plastic, or see smoke from under the hood of your 2019 Jeep Compass, stop your checks and have the car towed. Those are signs of a serious short or fire risk.

Quick Visual Checks for 2019 Jeep Compass

Before you touch a multimeter or buy parts, do a fast visual inspection of your 2019 Jeep Compass. Many electrical problems are caused by loose connections or obvious damage you can see in seconds.

1. Check the battery terminals on your 2019 Jeep Compass
   • Open the hood and locate the battery.
   • Look for white or green crust on the terminals or clamps.
   • Gently try to twist each battery clamp by hand. If it moves, it is too loose.
   • Check that the battery is not swollen or leaking on your 2019 Jeep Compass.
2. Inspect the main cables
   • Follow the thick positive cable from the battery of your 2019 Malibu to the fuse box or starter area.
   • Look for cracked insulation, exposed copper, or signs of rubbing on metal parts.
   • Check the negative cable where it bolts to the body or engine block.
3. Look at the under-hood fuse box
   • On your 2019 Jeep Compass, open the main fuse box cover under the hood.
   • Check for water, corrosion, or melted plastic around any fuses or relays.

If you find severely corroded battery terminals or obviously damaged cables on your 2019 Jeep Compass, those should be addressed before deeper diagnosis. Cleaning or tightening them often solves dim lights and random resets.

Battery Checks on a 2019 Jeep Compass

The battery in your 2019 Jeep Compass heart of the electrical system. A weak or failing battery can cause no-starts, dim lights, and even odd warning lights on the dash.

Step-by-step battery inspection

1. Check the age of the battery
   • Look for a date sticker or code on the top or side of the battery in your 2019 Jeep Compass.
   • Most batteries last about 3–5 years. If yours is older than that, replacement is likely.

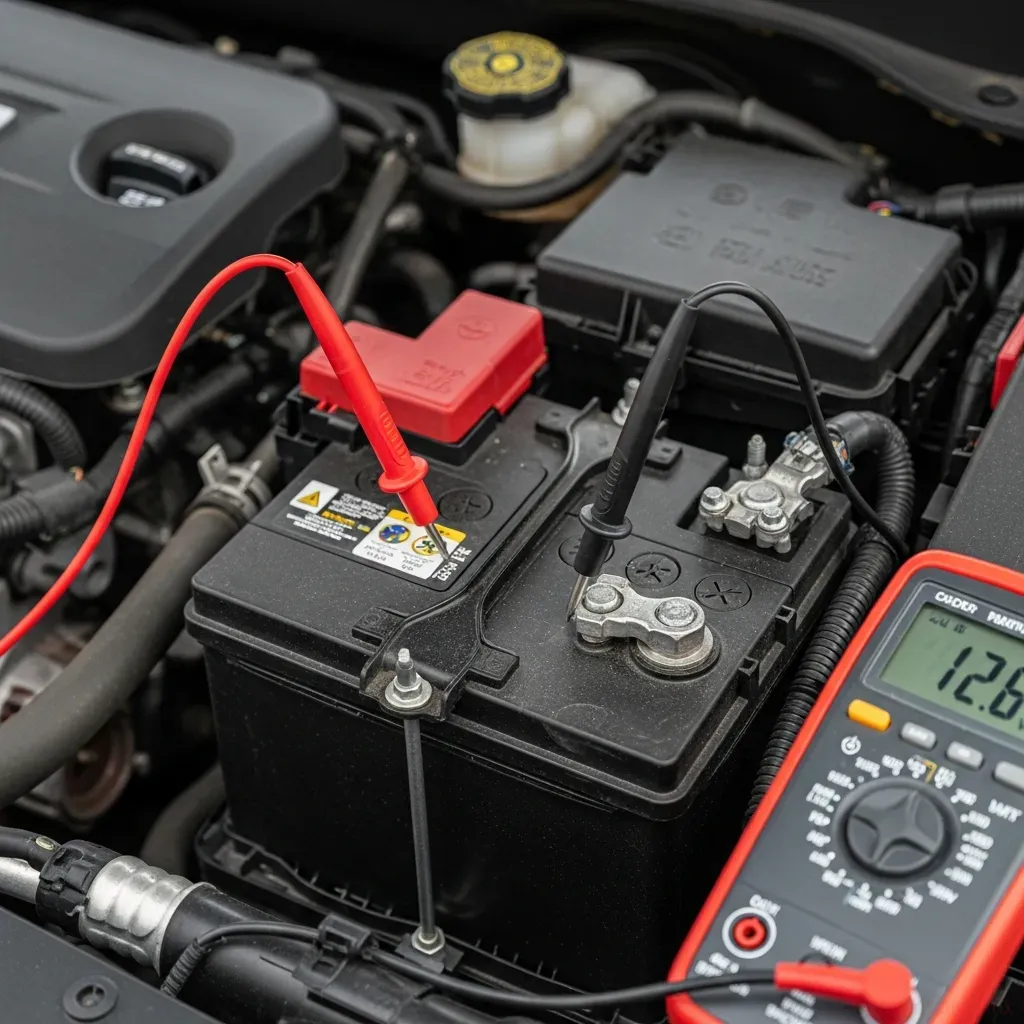

2. Test resting voltage (if you have a multimeter)
   • With the 2019 Jeep Compass and headlights off, set the meter to DC volts.
   • Place the red probe on the positive terminal and the black probe on the negative.
   • A healthy, fully charged battery should read around 12.4–12.7 volts.
   • If your 2019 Malibu battery reads below about 12.2 volts, it is low; below 12.0 volts is very weak.
3. Perform a simple load check
   • Turn the headlights on for 1–2 minutes with the engine off.
   • Watch the lights on your 2019 Jeep Compass. If they quickly get very dim or the car will not crank afterward, the battery is likely weak.

If the battery in your 2019 Jeep Compass or fails these checks, replacing it is often the fastest fix. However, you still need to confirm that the alternator is charging correctly so you do not kill a new battery.

Alternator and Charging System Checks on a 2019 Jeep Compass

The alternator in your 2019 Jeep Compass battery charged while you drive. If it fails, the battery light usually comes on and the car may eventually stall.

How to check alternator output

1. Start your 2019 Jeep Compass
   • With the engine running, turn off accessories like AC, rear defogger, and heated seats.
2. Measure charging voltage (with a multimeter)
   • Place the red probe on the battery positive terminal and the black probe on the negative.
   • A healthy alternator on a 2019 Jeep Compass around 13.8–14.5 volts.
   • If you see under 13.5 volts, the alternator may be weak or the belt may be slipping.
   • If you see over 15 volts, the voltage regulator may be failing, which can damage electronics in your 2019 Malibu.
3. Turn on electrical loads
   • Switch on headlights, blower fan, and rear defogger in your 2019 Jeep Compass.
   • Voltage should stay above about 13.5 volts. If it drops close to 12 volts, the alternator is struggling.

If your 2019 Jeep Compass charging voltage and the battery light is on, the alternator or its wiring is likely at fault. At this point, a mechanic can confirm with a professional load test, but you already have strong evidence from your checks.

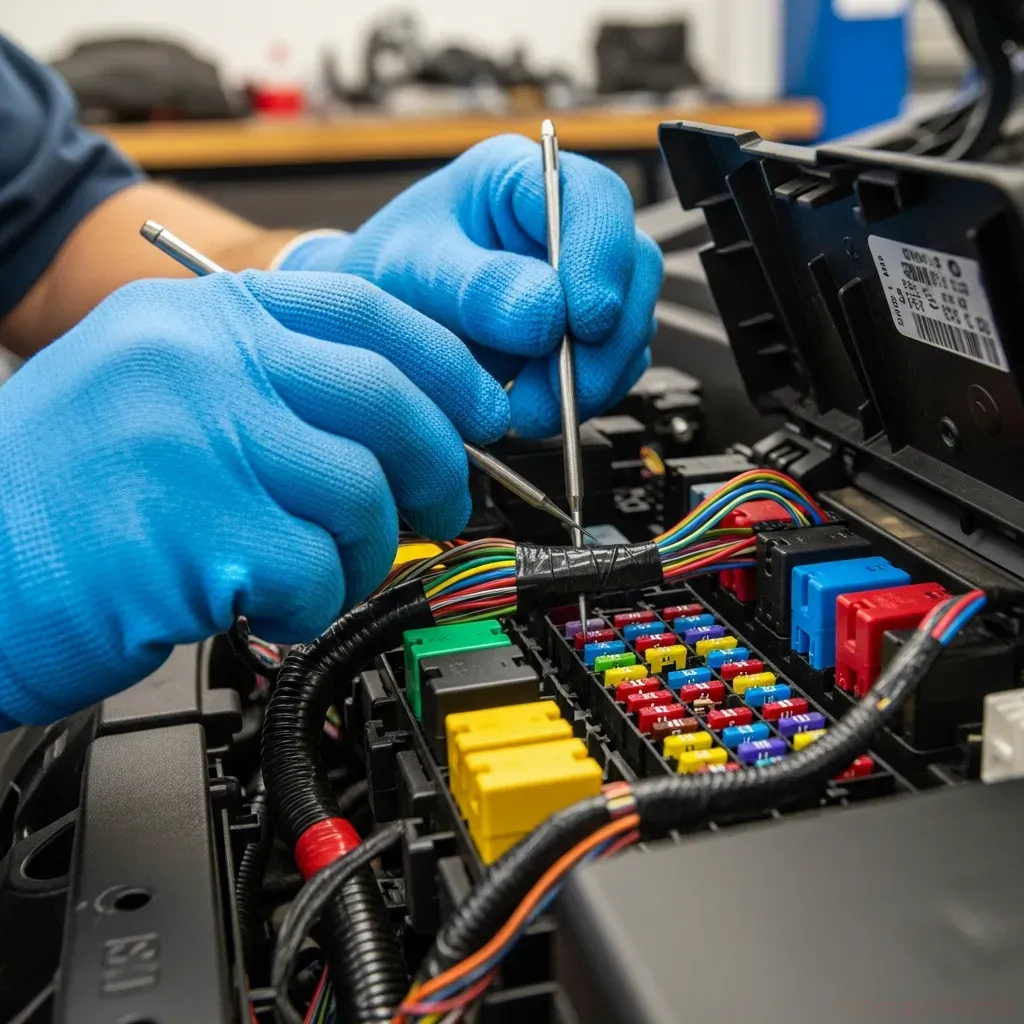

2019 Jeep Compass: Fuse and Relay Checks

Blown fuses and bad relays are common causes of specific electrical failures in a 2019 Jeep Compass, such as a dead power window, non-working radio, or inoperative blower fan.

How to check fuses on your 2019 Jeep Compass

1. Locate the fuse boxes
   • Your 2019 Jeep Compass main fuse box under the hood and another inside the cabin.
   • Use the fuse box cover diagram to find the circuit that matches your problem (for example, blower, radio, or power outlet).
2. Inspect suspect fuses
   • Use a fuse puller or needle-nose pliers to remove the fuse.
   • Hold it up to the light. If the metal strip inside is broken or burned, the fuse is blown.
   • Replace it with a fuse of the same amp rating only.
3. Test the circuit
   • Turn the key on in your 2019 Malibu and try the device again.
   • If the new fuse blows immediately, there is a short in that circuit that needs professional diagnosis.

Relays in your 2019 Jeep Compass devices like the fuel pump or cooling fan. Swapping a suspect relay with another identical relay in the same fuse box (that controls a non-critical circuit) is a quick test if you are comfortable doing it.

Ground Connections and Wiring Issues in a 2019 Jeep Compass

Poor grounds are a hidden cause of many electrical problems in a 2019 Jeep Compass, including flickering lights, random warning lights, and intermittent no-starts. Grounds are the points where wiring connects back to the body or engine block.

1. Find main ground points
   • Look for thick black cables or braided straps from the battery negative to the engine and body of your 2019 Jeep Compass.
   • Also look for smaller ground wires bolted to the inner fenders or frame.
2. Inspect and clean grounds
   • Check for rust, paint, or corrosion under the ground lugs on your 2019 Jeep Compass.
   • If you are comfortable, disconnect the negative battery terminal, then remove the ground bolts one at a time.
   • Lightly clean the contact surfaces with fine sandpaper and reinstall the grounds tightly.
3. Check for damaged harnesses
   • Look in common flex points on your 2019 Malibu, such as the wiring between the body and doors or trunk.
   • Gently move the harness while watching for lights or accessories to cut in and out.

Intermittent problems in your 2019 Jeep Compass, like a dome light that sometimes works or a power window that only moves if you slam the door, often trace back to broken or corroded wires in these flex points.

Dashboard Warning Lights and Electrical Issues on a 2019 Jeep Compass

Electrical problems in a 2019 Jeep Compass warning lights on the dash. Understanding which lights are related to the electrical system helps you decide what to check first.

• Battery/charging light: Points to battery, alternator, or wiring issues.
• ABS or traction lights: Can be triggered by low voltage or bad wheel sensors, but low system voltage from a weak battery in your 2019 Malibu is a common cause.
• Multiple random lights: If several lights come on at once, suspect low voltage or a poor ground.

If you are also seeing check engine lights along with electrical issues on your 2019 Jeep Compass, reading OBD2 codes can give more clues. For example, catalyst efficiency issues like those discussed in OBD2 Code P0420: Catalyst System Efficiency Below Threshold may show up at the same time as charging problems because low voltage can confuse engine sensors.

When warning lights appear together with symptoms like shaking under braking or odd shifting, remember that some problems overlap systems. For example, if your 2019 Jeep Compass a steering shake under braking, a guide like Steering Wheel Shakes When Braking: Causes, Diagnosis & Fixes can help you separate brake issues from electrical ones.

Simple Decision Guide: Can You Drive Your 2019 Jeep Compass?

Use this quick checklist to decide if your 2019 Jeep Compass to drive or if you should stop and call for help.

1. Is the battery light on solid while driving?
   • Yes: Limit driving. Your 2019 Malibu is likely running only on battery power and may stall when the battery dies.
   • No: Go to the next question.
2. Do lights and electronics flicker or reset?
   • Yes: Suspect loose battery terminals, bad grounds, or a failing alternator on your 2019 Jeep Compass.
   • No: Go to the next question.
3. Does the engine crank slowly or just click?
   • Yes: Battery or starter issues are likely. After basic checks, avoid repeated cranking to prevent damage.
   • No: Go to the next question.
4. Are there burning smells or visible smoke?
   • Yes: Stop immediately, turn off your 2019 Jeep Compass, and have it towed.
   • No: You can usually continue basic diagnosis at home.

FAQs: 2019 Jeep Compass

Why does my 2019 Jeep Compass dying overnight?
On a 2019 Jeep Compass, repeated overnight battery drain is often caused by interior lights staying on, a bad trunk or door switch, or an aftermarket accessory drawing power. After confirming the battery and alternator are good, a mechanic can perform a parasitic draw test to find which circuit is draining your 2019 Jeep Compass.

Why do the lights on my 2019 Jeep Compass I stop at a light?
If your 2019 Jeep Compass at idle but brighten when you rev the engine, the alternator may be weak at low RPM or the belt may be slipping. Checking charging voltage at idle and under load will show whether the alternator on your 2019 Jeep Compass up.

My 2019 Jeep Compass’t start but the dash lights work. What should I check?
If your 2019 Jeep Compass but will not crank, start with the battery terminals, grounds, and starter circuit fuses. A weak battery can still light the dash but not spin the starter, so voltage checks on your 2019 Malibu are important before assuming the starter is bad.

Can a bad alternator damage the battery in my 2019 Jeep Compass?
Yes. On a 2019 Jeep Compass, an alternator that undercharges will leave the battery constantly low, shortening its life, while an alternator that overcharges can overheat and warp the battery plates. That is why confirming charging voltage is critical when you replace the battery on your 2019 Jeep Compass.

Summary and Next Steps

By following these simple checks, you can narrow down most electrical problems on a 2019 Jeep Compass battery, alternator, fuses, grounds, or wiring. Knowing which system is at fault helps you avoid guesswork and unnecessary parts.

If your 2019 Jeep Compass charging voltage, repeated blown fuses, melted wiring, or burning smells, stop driving and schedule professional service. For persistent warning lights or complex electrical faults, bring your notes and test results to a trusted mechanic so they can diagnose your 2019 Jeep Compass more accurately.
